Gewiss GW66012 Socket 32A 110V 2P+E
SKU: GW66012
£80.34 incl. TAX
£66.95 excl. TAX
32A 2P+E 110V Horizontal Interlocked Socket
Sold by Gewiss, this is the GW66012 Socket 32A 110V 2 Pole+Earth. Industrial-type socket-outlets conforming to IEC 309 Standard, with mechanical interlock consisting of a circuit breaker enabling the plug to be connected and disconnected only in the open position, and the switch to close only with the plug inserted.
| Product | Socket |
|---|---|
| Type | Switch Interlocked |
| Pole Configuration | Double Pole + Earth (2P+E) |
| Number of Gangs | 1 |
| Number of Ways | 1 |
| Number of Pins | 3 |
| Pin Shape | Round |
| Clock Reference | 4 |
| c/w Cable | N |
| Number of Entries | 0 |
| Ingress Protection | IP44 |
| Low Voltage? | N |
| Mounting | Surface |
| Material | Technopolymer |
| Colour | White/Yellow |

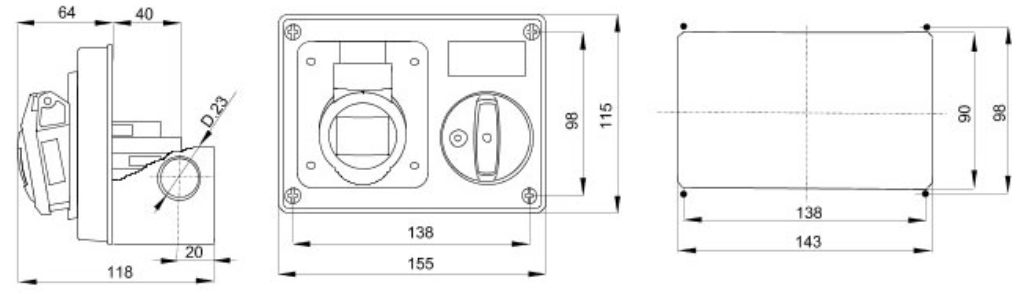

| Length | 115 mm |
| Width | 155 mm |
| Depth | 118 mm |
| Voltage | 110 V |
| Current Rating | 32 A |
| Frequency | 50/60 Hz |
| CE Approved | Y |
| Standards | IEC/EN60309 |
| Description | Gewiss GW66012 Socket 32A 110V 2P+E |
| EAN | 8011564006140 |
| GTIN | 8011564006140 |
| Price | 66.95 |
