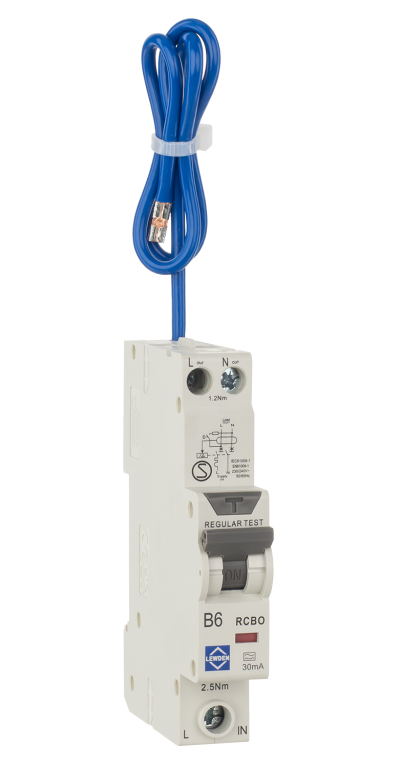

Lewden RCBO-B06/30/1PNA RCBO B 6A 30mA
SKU: RCBO-B06/30/1PNA
£117.67 incl. TAX
£98.06 excl. TAX
RCBO, B Type 1 Module 1P+N Switched
Sold by Lewden, this is the RCBO-B06/30/1PNA is designed and tested for use with Lewden branded distribution boards. It responds to both AC and pulsating DC residual currents. It double pole switching for complete isolation of faulty circuits & protects against both overcurrents due to overload and fault and residual current earth leakage.
| Product | RCBO |
|---|---|
| Type | Current |
| Pole Configuration | Single Pole (1P) |
| Number of Modules | 1 |
| Voltage Type | AC |
| Ingress Protection | IP20 |
| Trip Type | Type B |
| Short Circuit Rating | 6 kA |
| Sensitivity | 30 mA |
| Cable Capacity | 16 mm2 |
| Height | 111 mm |
| Width | 18 mm |
| Depth | 70 mm |
| Operating Temperature Range | -25 Degrees C |
| RCD Type/Class | A |
| Current Rating | 6 A |
| Voltage | 230-240 V |
| Frequency | 50/60 Hz |
| Unit Weight | 0.17 kg |
| Description | Lewden RCBO-B06/30/1PNA RCBO B 6A 30mA |
| EAN | 5026992045299 |
| GTIN | 5026992045299 |
| Price | 98.06 |
