Securi SFX/C5-UTP-PVC-GRY-305 Cbl 305m
SKU: SFX/C5 UTP PVC GREY
POA

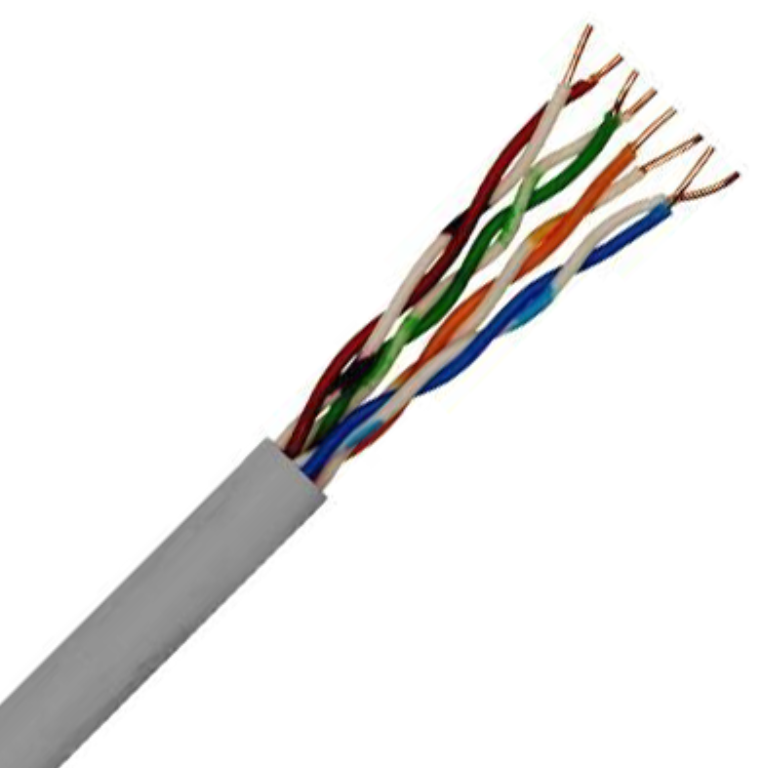

Catagory 5 Data Cable 305M Utp PVC Grey
Sold by Qing, this is the Securi SFX/C5-UTP-PVC-GRY-305 Catagory 5 Data Cable 305M Utp PVC Grey.
| Product | Cable |
|---|---|
| Type | Cat5e |
| Qualifier | 305m Category 5e 4pr UTP Grey PVC HDBaseT Certified |
| AWG | 24 |
| Core Identification | Coloured |
| Earth Core | N |
| Conductor Material | Copper |
| Conductor Construction | Bare |
| Insulation Type | HDPE |
| Armoured | Y |
| Fire Resistant | N |
| Note | Internal Data and CCTV transmission up to 100Mb/s |
| Resistance/Impedance | 115 Ohms |
| Drain Wire | Y |
| Number of Pairs | 4 |
| Magnetic armour | N |
| Outer Sheath Material | PVC |
| Outer Sheath Colour | Grey RAL 7004 |
| Drum Length | 305 Metres |
| Cable Diameter | 4.80 mm |
| Stranding Size | 0.47 mm |
| Minimum Temperature Rating | -20 Degrees C |
| Maximum Temperature Rating | 80 Degrees C |
| CE Approved | Y |
| Conforming Standard | ISO/IEC 11801 ANSI/TIA 568-C.2 CE2014/30/EU LVD 2014/35/EU RoHS2 2011/65/EU ISO/IEC 11801 ANSI/TIA 568.2-D CE2014/30/EU LVD 2014/35/EU RoHS2 2011/65/EU |
| Flame Propagation Standard | Eca |
| Description | Securi SFX/C5-UTP-PVC-GRY-305 Cbl 305m |
| EAN | 05056631502197 |
